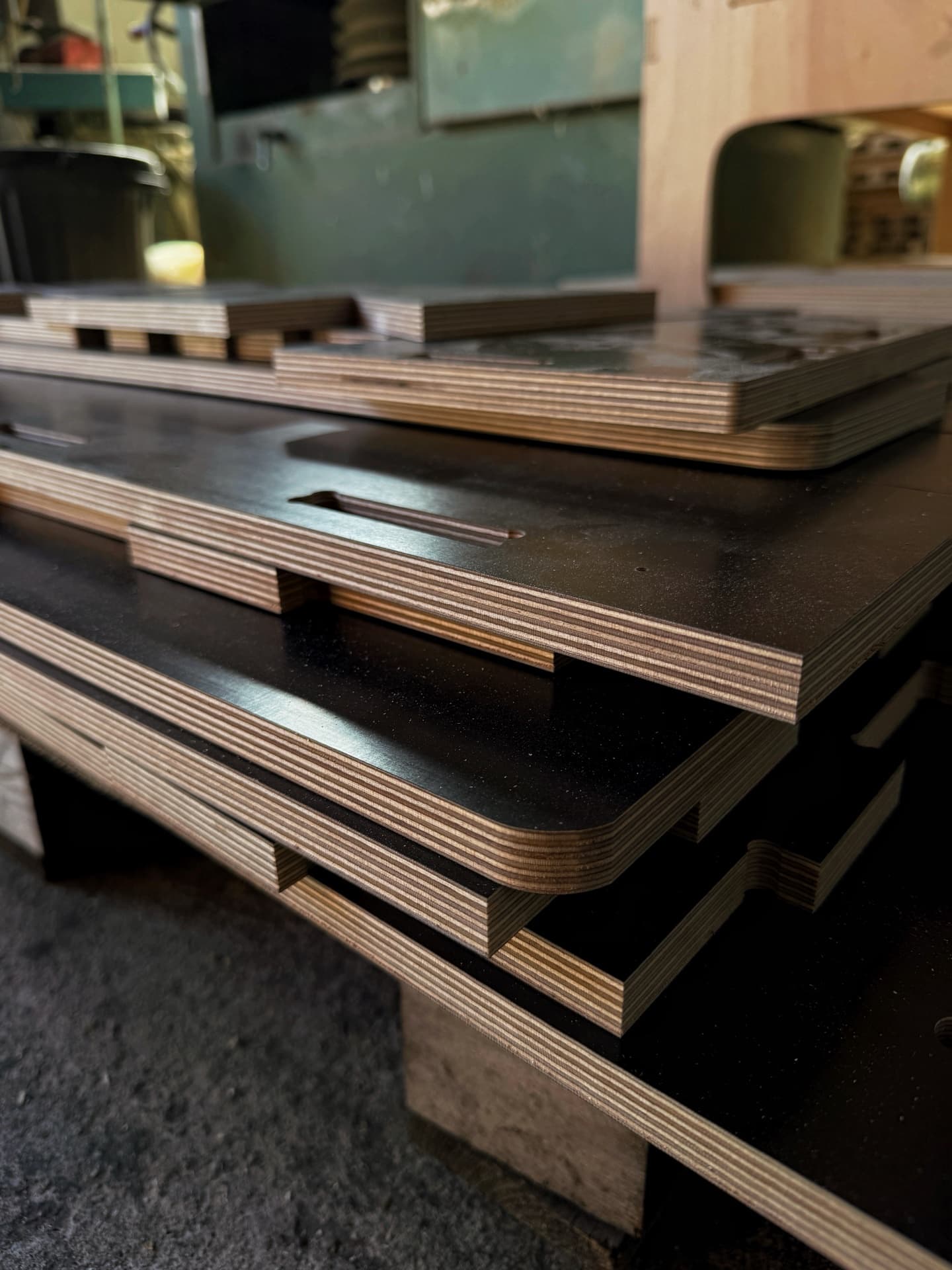

CNC Machining of Film-Faced Plywood Formwork & Concrete Blockouts in Toulouse, France

On construction sites across the Toulouse metropolitan area and the wider Occitanie region in Southern France, schedule pressure is relentless. Driven by demographic growth, structural contractors and civil engineering firms face two critical bottlenecks: a chronic shortage of skilled wooden formwork carpenters (coffreurs-boiseurs) and strict daily cycle rotations for modular steel gang forms (banches).

In this fast-paced environment, having skilled workers spend hours on site manually measuring, circular-sawing, and nailing together window bucks, edge forms, or shear key blockouts at the foot of the crane is financially inefficient. It drains labor, creates pour delays, and is the primary cause of architectural concrete defects.

Alcyde provides general contractors, civil engineering companies, and construction methods engineering offices with an industrial off-site prefabrication solution: high-precision CNC cutting of film-faced phenolic birch plywood, powered by our CNC machining center and CAD/CAM bureau based near Toulouse.

1. The True Cost of Handcrafted On-Site Wooden Formwork

Building bespoke wooden formwork elements on site conceals heavy indirect costs that construction directors and methods engineers understand all too well:

1.1 Unproductive Labor Allocation

Every hour a foreman or experienced tradesperson spends measuring, rough-cutting with hand tools, and planing wooden formwork boxes on site is an hour lost to rebar placement, gang-form assembly, and concrete casting. In a regional labor market facing skilled labor shortages, this misallocation directly slows down the overall floor-to-floor cycle time.

1.2 Material Waste and Waste Disposal Fees

Cutting standard plywood panels on makeshift sawhorses typically generates a 25% to 35% scrap rate. Because phenolic-coated plywood is a premium, high-density structural material, these offcuts represent pure financial loss and drive up on-site dumpster haul-away costs.

1.3 The Burden of Post-Pour Remedial Concrete Work (Patching and Grinding)

A manually cut blockout almost always exhibits dimensional variance of several millimeters or lacks watertightness under high hydrostatic pressure from vibrated fresh concrete. The result: grout leakage, honeycombing, spalled edges upon stripping, and out-of-tolerance rough openings for exterior glazing contractors. Grinding concrete fins and applying remedial patch mortars frequently costs three to five times more than the original wooden formwork itself.

2. What Alcyde Machines for Structural Contractors and Precasters

Our CAM engineering department and industrial CNC machinery translate your structural drawings and architectural CAD models into ready-to-install components, machined to within +/- 0.2 mm tolerances:

2.1 Window Bucks, Door Openings, and Shaft Blockouts

We manufacture precision custom blockouts for sliding doors, windows, entryways, elevator shafts, and MEP penetrations:

• Strict Dimensional Accuracy: opening dimensions strictly conform to rough opening tolerances required by window and facade contractors (zero remedial chipping before window installation).
• Integrated Draft Angles (Dépouille): engineered bevel angles facilitate smooth stripping without damaging the cured concrete corners or breaking the wooden buck.
• Fast Kit or Pre-Assembled Delivery: CNC-machined interlocking joints (half-lap, tenons, dados) allow on-site assembly in less than five minutes.

2.2 Formliners, Reveals, and Architectural Concrete Matrices

For textured facades, high-specification architectural concrete per standard NF DTU 21 (soigné finish), or civil infrastructure:

• 2D and 3D precision milling of geometric patterns, fluting, false joints, rustication strips, and drip edges.
• Custom molds for parapets, arched lintels, cornices, and architectural spandrel panels with an industrial consistency unachievable by hand.

2.3 Formwork for Straight and Winder Staircases

Cast-in-place concrete stairs represent one of the most time-consuming tasks for on-site carpenters:

• CNC-routed plywood stringers precisely marked with rise and run dimensions according to engineering staircase calculations.
• Integrated grooving to slide riser boards directly into place without on-site layout markings.
• Dramatic assembly time savings and strict compliance with building codes and accessibility standards.

2.4 Molds for Job-Site Precasting and Wall Edge Stops

• Bespoke molds for ground beams, site-cast grade precast panels, pile caps, and transfer girders.
• Wall stop-ends (abouts de voiles) with integrated chamfer strips and waterstop keyways milled directly from the solid panel.
• Non-orthogonal corner boxes beveled to the exact survey angles from site surveyor coordinates.

3. The Alcyde Edge: Industrial Nesting Layout & High-Precision Machining

On traditional job sites, manual cutting of standard panels leads to heavy material loss and dimensional approximations. Alcyde industrializes formwork preparation through algorithmic CAD/CAM Nesting and precision flat-table CNC machining:

1. High-Density Nesting (Optimized Sheet Layout): our CAM software automatically nests your various blockouts, formwork sides, stiffeners, and stop-ends onto standard 2500×1250 mm sheets. Average material scrap drops below 10% to 12% (compared to over 30% on site). You purchase significantly less raw material for a vastly superior finished product.
2. Integrated Mechanical Joinery: every part leaves our machine with pre-machined alignment dados, pilot holes, and chamfers. Your crews no longer need tape measures or framing squares on site: formwork components interlock mechanically like an engineered kit with millimeter-level squareness.
3. Immediate Job-Site Traceability: each component is labeled or CNC-engraved with its project mark from your methods schedule (e.g., BLD-A_FLR-2_WIN-BUCK-04). Your site teams identify and position the formwork immediately without any risk of confusion between floors or structural bays.

4. Technical Mastery of Phenolic Film-Faced Birch Plywood

Machining film-faced plywood (120 g/m² or 220 g/m² phenolic resin film, exterior WBP Class 3 bond) requires specific cutting expertise:

• The Phenolic Coating Challenge: the bakelite/phenolic surface is extremely hard and brittle. Conventional saw blades or improper feed rates instantly cause surface chipping along the cut edge. This chipping compromises panel sealing, allows mix water penetration, and leads to veneer swelling after only two or three pours.
• The Alcyde Method: we machine film-faced plywood using polycrystalline diamond (PCD) and compression micro-grain carbide spiral cutters (opposing up/down shear flutes). Wood fibers and surface resin are sheared inward during the cut, delivering crisp, razor-sharp edges with zero chipping on both faces.
• Edge Sealing: upon request, cut edges are factory-sealed with waterproof polyurethane coating to prevent moisture ingress, enabling 15 to over 25 pour cycles per formwork assembly.

5. Comparison: Manual On-Site Fabrication vs. Alcyde CNC Prefabrication

6. From CAD Files to Job Site Delivery in Southern France

Our workflow is designed to integrate seamlessly into structural engineering schedules:

1. Drawing Submission: send your DXF, DWG, STEP files or dimensioned PDF reservation schedules.
2. Technical Review & Quote within 48h: our engineering office validates buildability, selects optimal plywood thickness (15mm, 18mm, 21mm, or 24mm), and calculates sheet nesting.
3. CNC Machining & Part Labeling: every piece is CNC-routed, trimmed, and labeled with its job-site code.
4. Tailored Packaging: choose between fully assembled ready-to-crane blockouts or banded flat-pack pallet kits with clear assembly diagrams.
5. Reliable Regional Logistics: convenient pick-up at our shop (close to Toulouse ring road and the Lombez-Gers axis) or direct flatbed/crane truck delivery to job sites across Haute-Garonne, Gers, Tarn, and Southern France.

Frequently Asked Questions

What thicknesses of film-faced plywood do you keep in stock?
We primarily work with standard construction industry thicknesses: 15 mm, 18 mm (the standard for wall forms), 21 mm, and 24 mm in FSC/PEFC-certified Baltic/Finnish birch, with smooth 120 g/m² or 220 g/m² phenolic coating on both faces.

Can you machine release bevels and chamfers directly on the CNC?
Yes. Our CNC centers use specialized profile tooling to cut release angles, drip grooves, 45° chamfers, or battered face angles in a single pass, eliminating the need for tacked-on plastic chamfer strips that often dislodge during concrete vibration.

What is your turnaround time for a batch of window bucks or a staircase form?
We quote files within 24 to 48 hours. Production lead times are synchronized with your scheduled pour dates. Urgent production slots can be allocated to prevent job-site stoppages.

Can we supply our own plywood panels for machining?
Yes. We offer turnkey material supply and cutting, or toll-cutting services where you deliver your panel pallets to our workshop for machining according to your digital files.

Managing a concrete construction project in Southern France?
Send your architectural and structural drawings for an immediate nesting study and quote by contacting the Alcyde Engineering Bureau or explore our machine specs on our CNC Machining in Toulouse page.
