Workshop Metrology: Why Alcyde Invests in Mitutoyo High-Precision Measuring Tools

Let us be direct and realistic right from the start: measuring a sheet of plywood down to the micron makes no physical sense.

Wood is a living, noble, and hygroscopic material. It breathes, absorbs ambient moisture in winter, and contracts during dry summer periods. Claiming to guarantee tolerances to the thousandth of a millimeter on solid timber or plywood would be technical nonsense.

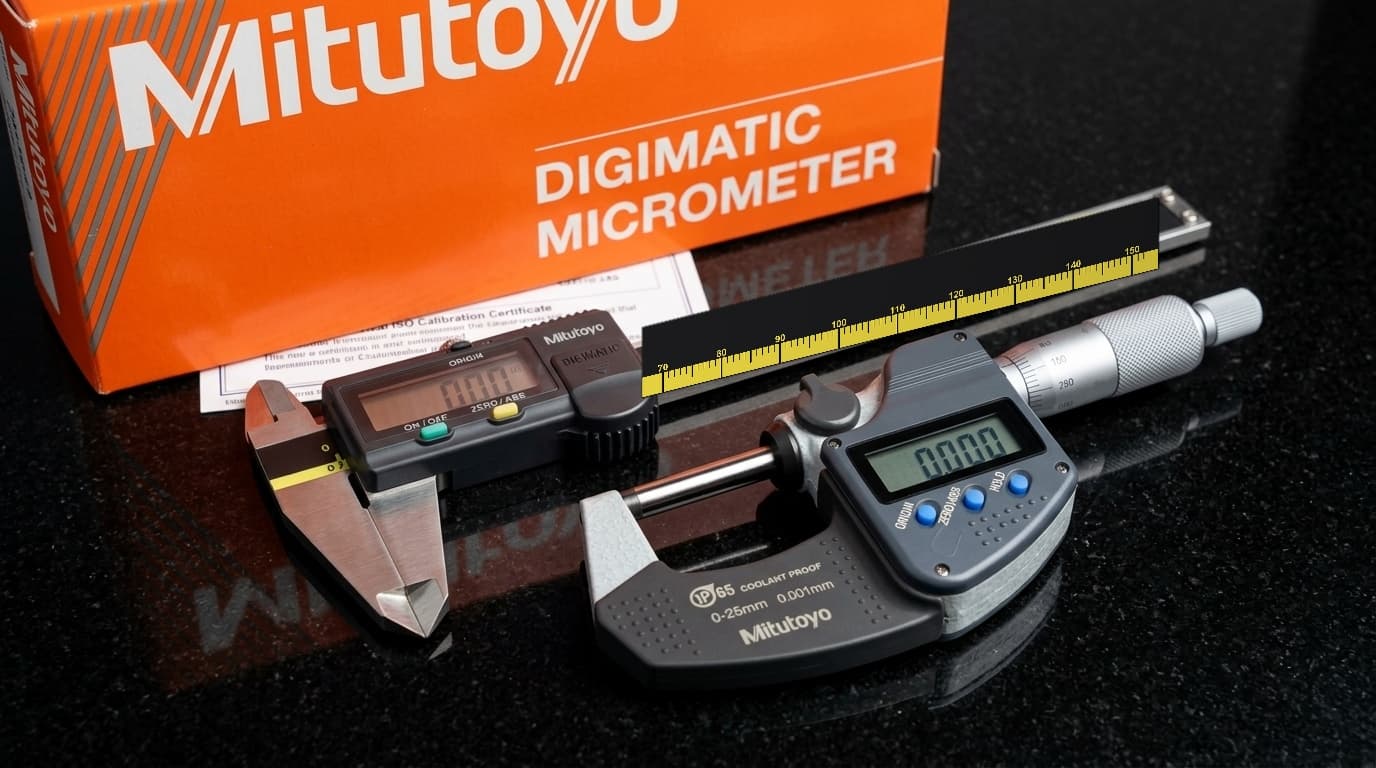

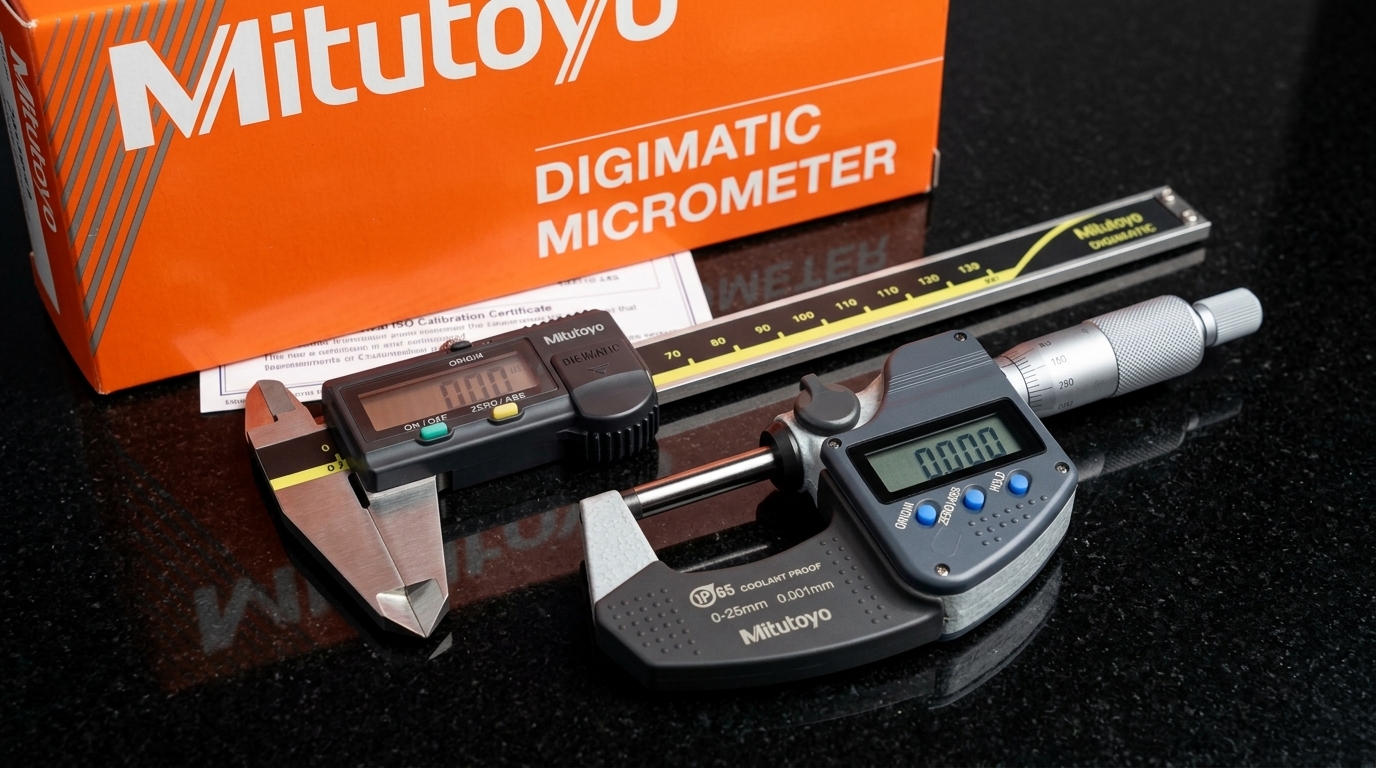

Why, then, has the ALCYDE workshop invested in two benchmark industrial metrology instruments — a Mitutoyo IP65 Coolant Proof digital external micrometer (0.001 mm resolution) and a Mitutoyo Digimatic caliper (0.01 mm resolution)?

Much like our recent investment in 11 kW of industrial vacuum pumps, this acquisition is not about chasing theoretical numbers on paper. It represents a pragmatic, benevolent continuous improvement approach designed to make our workshop future-proof.

1. Metrology in the Service of Workshop Common Sense

In CNC woodworking, sheet processing, and architectural joinery, real-world excellence is achieved at the tenth of a millimeter (± 0.1 mm). That is the exact tolerance band that makes all the difference:

• It allows two components to slide together smoothly by hand on site without forcing.
• It ensures a mortise-and-tenon or flat-pack interlocking joint maintains structural rigidity without sloppy play.
• It saves joiners, shopfitters, and installers from having to rework parts on site with hand chisels or sanding blocks.

There is a fundamental rule in metrology: to reliably guarantee a tolerance to the tenth of a millimeter, your measurement tool must be capable of resolving hundredths of a millimeter with stability and repeatability.

Measuring with entry-level or worn calipers introduces operator doubt. Using certified, calibrated instruments provides quiet confidence: when a dimension is checked in the workshop, it is undeniably accurate.

2. Managing Raw Sheet Thickness Variations

In contract CNC machining, the greatest source of dimensional variation rarely comes from the CNC machine itself, but from the manufacturing tolerances of raw sheet materials.

A Finnish birch plywood sheet labeled "15 mm" by the supplier complies with European standards (EN 315), meaning its actual thickness can legally vary between 14.5 mm and 15.3 mm depending on manufacturing batches and humidity:

• If a CAM program cuts theoretical 15.0 mm grooves in a batch measuring 15.3 mm, parts will jam and face veneers may tear during assembly.
• If the next batch measures 14.6 mm, the joint fits too loosely and adhesive cannot bridge the mechanical gap properly.

By systematically inspecting raw panel thicknesses upon receipt down to the hundredth of a millimeter, we can fine-tune joint clearances in Autodesk Fusion 360 in seconds.

This simple workshop habit tailors CNC cutting to the real-world material, ensuring our clients receive components that fit together effortlessly on the first try.

3. Monitoring Cutters to Anticipate Tool Wear

CNC precision is also directly tied to the geometry of cutting tools:

• A brand new 8 mm solid carbide end mill rarely measures exactly 8.000 mm (standard h6 manufacturing tolerance).
• Over hundreds of meters cut in abrasive materials (hardwoods, compact composites, engineered resins), the cutting edge gradually wears down, losing hundredths of a millimeter on its radius.
• Toolholders and collet chucks naturally introduce slight dynamic runout.

With our micrometer, we can accurately verify the effective cutting diameter of our bits and adjust tool radius compensation (Offset D) directly inside the CNC controller.

This is not over-engineering: it is simply the common-sense assurance of preventing dimensional drift before it ever impacts finished client parts.

4. Preparing for the Future: Technical Materials and Demanding Projects

The ALCYDE workshop is growing. While wooden components and flat-pack furniture kits remain a core activity, we are increasingly entrusted with projects requiring higher technical specifications:

• Engineering and industrial plastics (HDPE, POM-C, Polycarbonate, expanded PVC) for assembly jigs, tooling, and industrial machine parts.
• Dense compact composites (Compact HPL, Trespa, mineral resin panels).
• Prototyping and subcontracting for design offices and regional aerospace and railway partners in Occitanie.

On these homogeneous, thermally stable materials, tolerances of ± 0.05 mm are standard. Equipping our workshop today with globally recognized metrology instruments allows us to embrace these future opportunities with confidence.

5. Why Choose Mitutoyo?

When outfitting a workshop, the market offers countless digital instruments across all price brackets. At ALCYDE, we made the deliberate choice of Japanese benchmark manufacturer Mitutoyo Europe:

1. Long-Term Durability: These tools are engineered to perform reliably for decades in demanding workshop environments.
2. IP65 Coolant Proof Protection: The micrometer resists water, cutting fluids, and airborne dust without losing its origin zero position.
3. Advanced Onsite Sensor (AOS) System: Electromagnetic induction technology eliminates display jump and errors caused by airborne sawdust on the scale.
4. Zero Built-In Obsolescence: A permanent, certified asset that can be recalibrated on reference gauge blocks whenever required.

Precision as a Mark of Respect for Our Clients

Investing in proper equipment is never about ego or marketing claims. Above all, it is a mark of respect for the craft and time of our professional clients — joiners, architectural fitters, and product designers:

• Respect for their installation time on site.
• Respect for their commitments to their own end clients.
• Respect for raw materials, by minimizing test cuts, errors, and workshop scrap.

Whether you need a functional prototype or medium-batch contract CNC machining, our workshop puts its equipment and care at the service of your projects.
