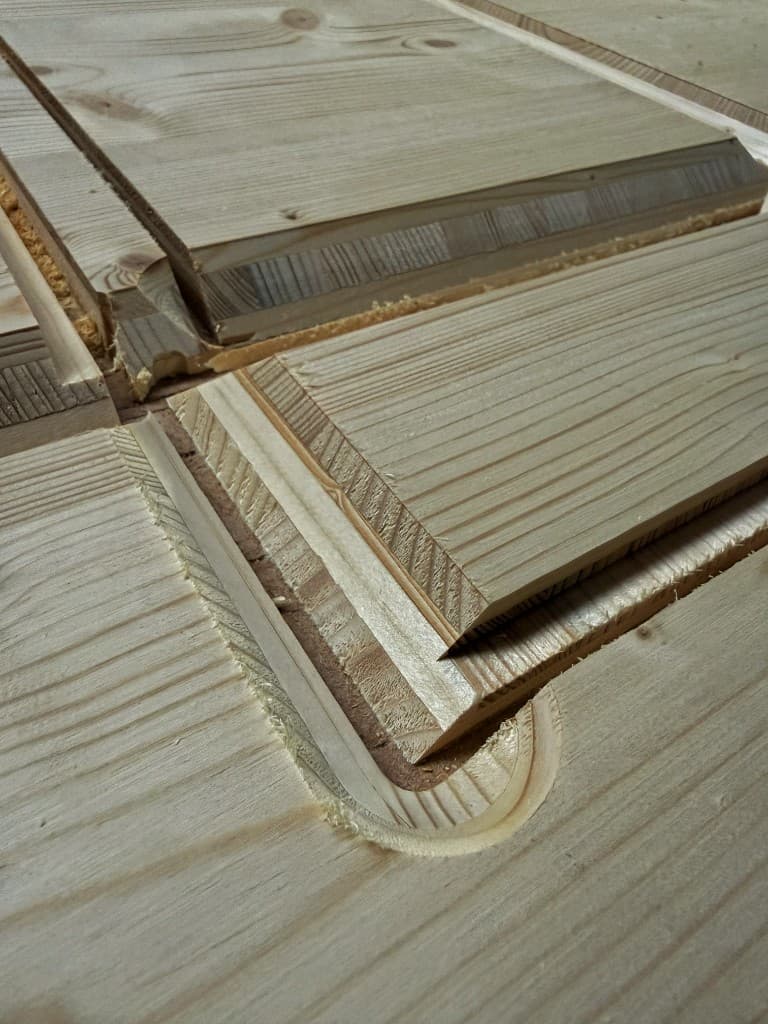

CNC Machining of 3-Ply Solid Wood Panels: Direct 45° Miter Cuts and Seamless Corner Joints

3-ply cross-laminated solid wood panels (commonly referred to as 3-ply or multi-ply solid boards in spruce, larch, or pine) are widely specified in contemporary interior architecture, mountain residences, and upscale commercial fit-outs. Composed of three solid wood layers bonded crosswise under pressure, they combine the authentic visual appeal of natural solid grain with remarkable dimensional stability, virtually eliminating warping and cupping.

When crafting clean-lined cabinets, reception desks, and architectural casework, the 45° miter joint is the benchmark method for concealing end grain and creating the illusion of a monolithic block of solid timber.

Why Machine 45° Miters Directly on a CNC Router?

In conventional woodworking, cutting 45° miters on large solid boards using a sliding table saw presents well-known hurdles:

• Heavy panel handling: Guiding 2 to 3-meter boards against an angled fence often requires two operators, increasing the risk of surface scratching or angular misalignment.
• Tear-out on softwoods: Spruce and coniferous timbers feature soft long fibers that tear easily along sharp outer knife-edges during traditional sawing.
• Angular variations: Maintaining a perfectly uniform angle over several linear meters remains difficult with manual pushing.

At the Alcyde workshop, we route these miter cuts directly on our 3-axis CNC router on a high-flow vacuum bed, in a single nesting operation.

Technical Advantages of CNC Miter Cutting

1. Consistent angular precision: The angle is governed strictly by the conical 45° profile of our solid carbide tooling. With no mechanical fence variance, the angle remains accurate from start to finish.
2. Grain continuity (waterfall edge effect): By machining adjacent panels nested side by side from the same sheet, the natural wood grain flows uninterrupted around 90-degree corners.
3. Zero secondary processing: Parts emerge from the machine fully profiled, beveled, and drilled. They are immediately ready for shop gluing or flat-pack jobsite delivery, without any intermediate spindle moulder or table saw steps.
4. Clean edges: Upward chip evacuation and heavy vacuum clamping prevent tear-out along visible finished faces.

Typical Applications

• Bespoke architectural cabinetry: Seamless open boxes, bookshelves, media units, and monolithic consoles in 3-ply spruce or larch.
• Retail & Hospitality spaces: Reception desks, cash wraps, merchandise displays, and island claddings.
• Interior architecture: Column surrounds, beam wraps, and architectural trim without exposed end grain.

Technical Specifications and Accepted File Formats

• Machinable timber species: 3-ply spruce, larch, Douglas fir, Scots pine, 3-ply European oak.
• Standard panel thicknesses: 19 mm, 22 mm, 27 mm, 32 mm, and 40 mm.
• Complementary operations: Hardware drilling (System 32, Lamello Cabineo / Clamex P, dowels), back grooves, and LED profile rebates.
• Accepted file formats: 1:1 vector drawings or 3D CAD models in DXF, DWG, STEP, or dimensioned PDF.

Frequently Asked Questions

How are 45° CNC mitered joints clamped during glue-up?
Because the machined bevels are true and flat, the fastest method consists of laying the exterior faces flat, taping the joint tight with heavy-duty reinforced tape, applying wood glue (D3 or D4) in the groove, and folding the corner 90 degrees. The tape maintains clamping pressure throughout the curing process.

Can demountable knockdown fittings be integrated into 45° miters?
Yes. We can incorporate dedicated pockets for specialized miter connectors (such as Lamello Clamex P-14/10 Medius or angled dowel patterns), allowing components to be shipped flat and rapidly bolted on site.

Can you supply the 3-ply timber boards?
Yes. We can procure certified joinery-grade 3-ply panels (calibrated face grades A/B or B/C) through our timber trade partners, or machine panels supplied directly by your team.

What is the typical production turnaround for a batch of 3-ply cabinets?
For a set of cabinets or a full fit-out package, standard turnaround is 3 to 5 business days upon CAD file approval and material receipt.
