From 3D CAD to the CNC Workshop: Our In-House Cabinet Engine on Fusion 360

In interior fitting and bespoke cabinetry, modeling custom furniture is often a time-consuming bottleneck. Designing each individual panel, manually positioning 32 mm hole patterns, subtracting edge banding thicknesses, and configuring hardware pocketing introduces frequent risks of human error between CAD design and CNC manufacturing.

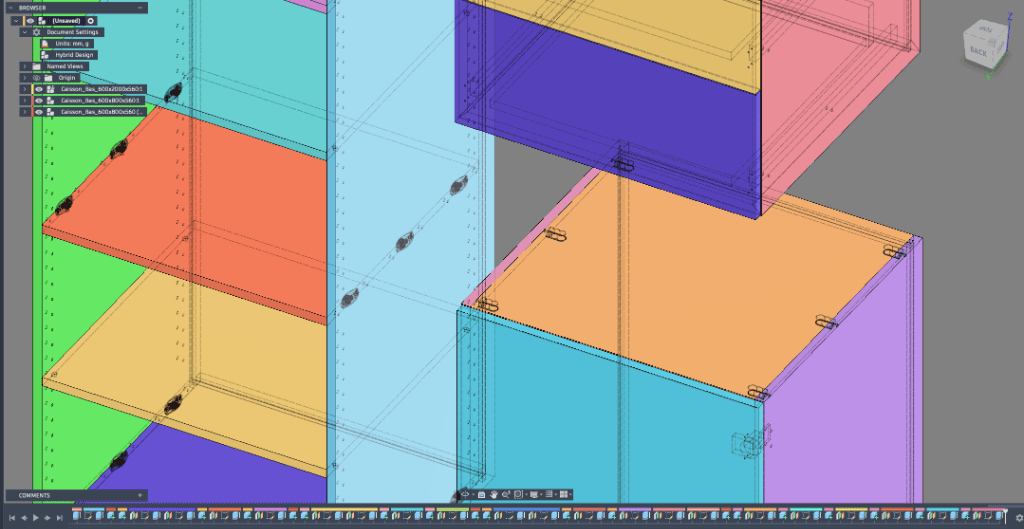

To answer subcontracting demands from professional joiners, interior architects, and fitters with optimal turnaround times, ALCYDE has developed an in-house parametric tool within Autodesk Fusion 360. This engine generates production-ready cabinet assemblies in seconds, with all mechanical hardware joints already positioned.

1. Craftsmanship Logic at the Core of Modeling

Rather than relying on static 3D block libraries or closed proprietary software, we engineered a parametric engine tailored to the real constraints of our CNC workshop.

Driven by core parameters — height, width, depth, exact sheet thickness (18 mm, 19 mm, calibrated birch plywood, or moisture-resistant MDF) —, the cabinet structure automatically regenerates:

• Joint Overlap Management: Direct selection between full-height sides, top/bottom shelf priority, or 45° miter folded joints.
• Back Panels: Parametric integration of grooves (inset back) or rebates (screwed back), with automatic assembly clearance compensation.
• System 32 Hole Lines: Automated calculation and spacing of shelf pin holes and standardized 32 mm centerlines compatible with industry-standard hardware (Blum, Hettich, Grass) for drawer runners and hinge mounting plates.

2. Direct Integration of Industrial Fastening Systems

The key advantage of this development lies in exact toolpath pre-modeling for modern joinery hardware:

2.1 Cabineo Connectors (Lamello)

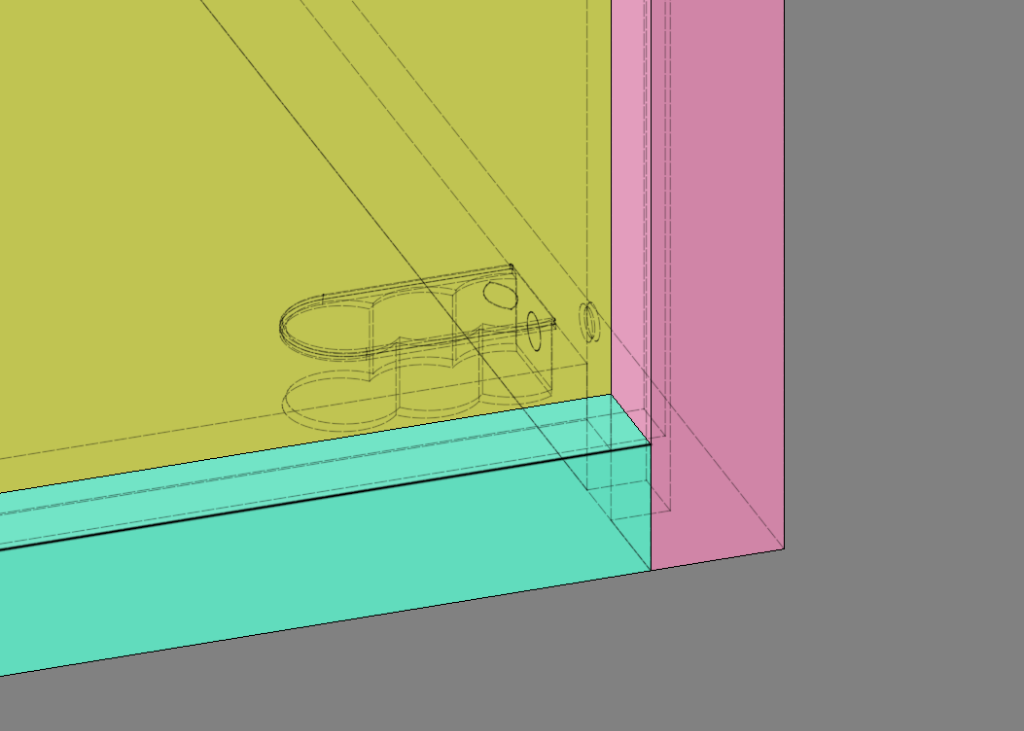

The one-piece Lamello Cabineo connector system is engineered for flat-bed CNC processing (Nesting guide). The plugin automatically generates surface pockets and through-holes directly on the panel face. Machining is accomplished in a single pass without edge boring on a 5-axis center or boring rig, significantly lowering manufacturing costs.

2.2 Clamex P-System Hardware

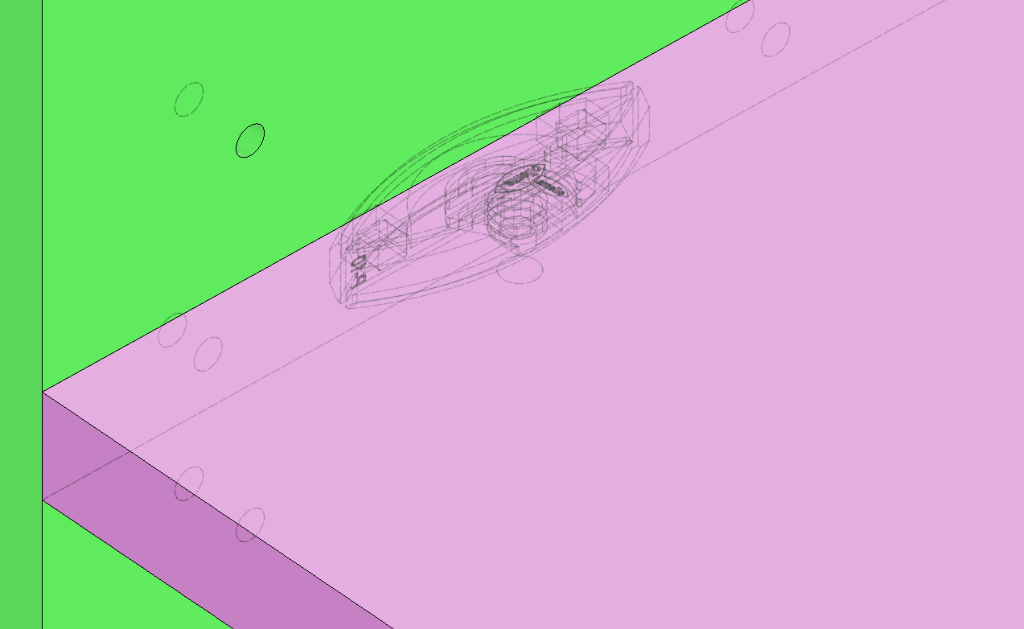

For premium detachable cabinetry and visible designer furniture, the plugin incorporates T-slot geometry for demountable Lamello Clamex P-System connectors (Clamex P-14 and P-10). Pocketing toolpaths are pre-calibrated for zero-play assembly and invisible quarter-turn locking.

2.3 45° Miter Joints

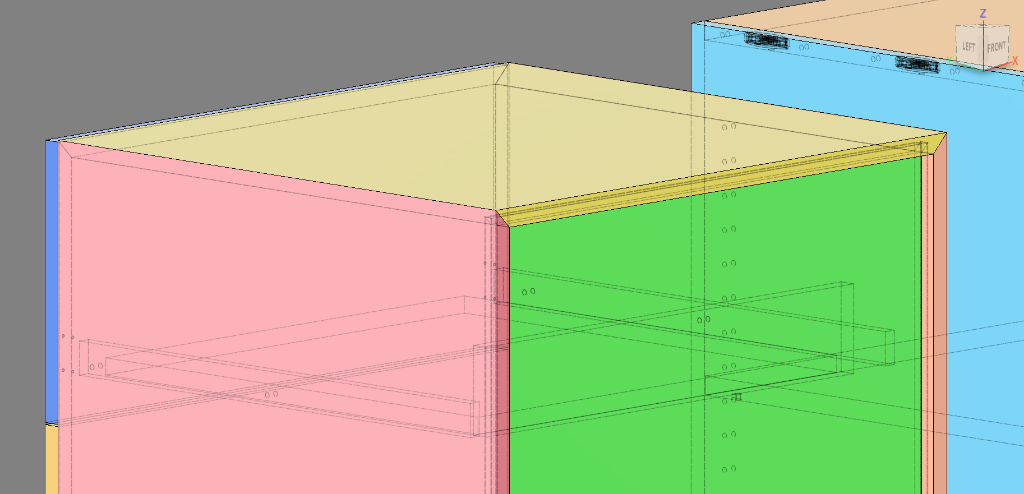

For lacquered finishes or high-end architectural units where core edges must remain concealed, the engine calculates 45° miter connections. Alignment hardware (splines or specialized miter Clamex fittings) is positioned with mathematical accuracy.

3. Zero Re-Entry: From CAD to Nesting Layout

In standard workflows, transferring designs from CAD to CAM requires exporting DXF files, reassigning layers, manually specifying tool depths, and redrawing pockets.

With our integrated pipeline built for our CNC machining service in Toulouse:

1. Instant 3D Validation: The cabinet assembly is verified on screen, ensuring hardware fittings perfectly match their receiving holes.
2. Automatic Nesting: Furniture components are routed directly into our nesting optimization engine for large-format CNC milling.
3. Barcoding & Labeling: Each machined part exits the vacuum table labeled with its cabinet identifier, edge grain orientation, and hardware locations.

4. Operational Benefits for Your Jobsites

For joiners and contractors relying on ALCYDE for their cabinetry and joinery subcontracting:

• Shortened Engineering Delays: Cutting lists or dimensioned sketches are converted into machine-ready G-code within 24 to 48 business hours.
• Guaranteed Tolerances: CNC milling operates within +/- 0.1 mm precision, ensuring true right angles and immediate jobsite assembly.
• Flat-Pack Delivery: Components are delivered flat-packed, cleaned, labeled, and ready to fasten, freeing up workshop capacity and streamlining logistics.

Conclusion

Developing custom software within ALCYDE serves a single goal: putting digital precision at the service of wood craftsmanship and technical panels. Whether you require a single bespoke carcass with complex angles or large-scale production runs for commercial and residential fittings, our digital workflow delivers flawless execution without surprises.
